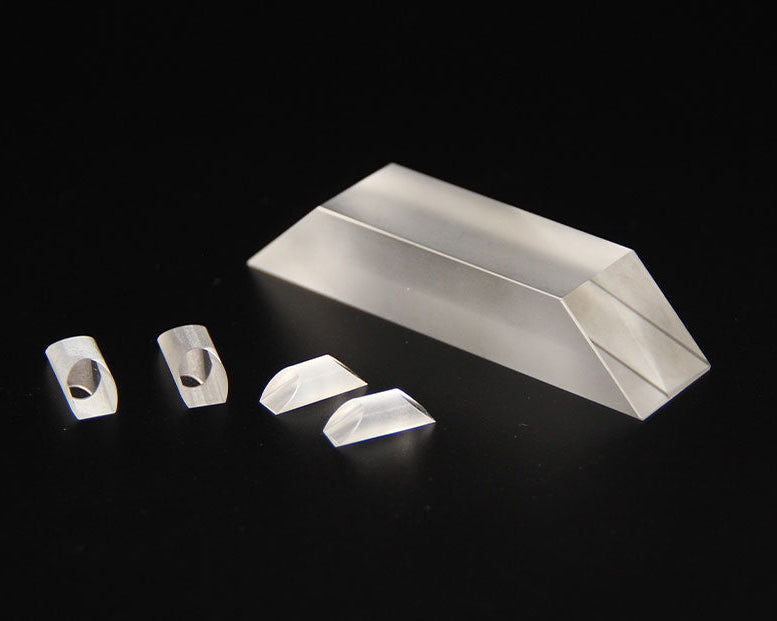

Azure Spy High Precision Dove Prism – Image Rotation & Inversion Optics

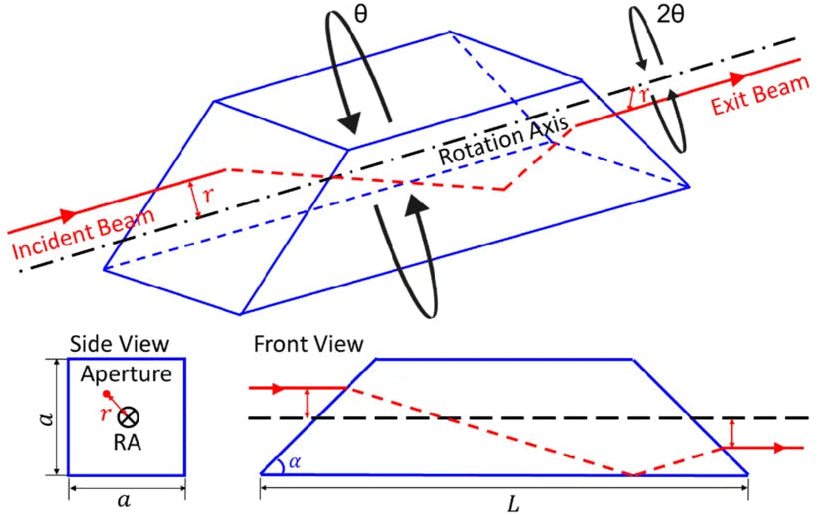

The Azure Spy High Precision Dove Prism is a specialized optical component designed for image inversion and continuous image rotation within optical systems. When light passes through the prism along its longitudinal axis, the image is inverted, and rotating the prism itself results in a corresponding rotation of the image at twice the angular rate—making it highly valuable in precision imaging applications.

Manufactured from premium-grade optical glass, each Dove prism is carefully polished to achieve high surface accuracy and excellent optical clarity. The reflecting surface is precision-angled and can be enhanced with metallic or dielectric coatings to ensure maximum internal reflection and minimal light loss.

The elongated geometry of the Dove prism makes it ideal for integration into compact optical assemblies where controlled image manipulation is required. It is widely used in interferometry, beam steering, astronomy, medical imaging, and laser systems.

With strict quality standards and precision fabrication, Azure Spy ensures consistent performance, low wavefront distortion, and superior reliability in both laboratory and industrial environments.

Key Features:

• Precise image inversion and rotation capability
• Image rotates at 2× the prism rotation angle
• High surface accuracy and high optical finish
• Low wavefront distortion and high optical clarity
• Premium optical glass (BK7)
• Optional anti-reflection or reflective coatings
• Suitable for laser and visible wavelength applications

Optional Specifications:

• Material: BK7 / Fused Silica
• Surface Accuracy: λ/4 or better
• Surface Quality: 60-40 scratch-dig
• Angle Tolerance: High precision angular control
• Coating Options: AR Coating / Aluminum / Silver

Applications:

• Optical image rotation systems
• Interferometers
• Laser beam manipulation
• Astronomical instruments
• Medical and scientific imaging
